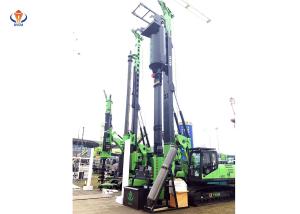

Powerful vibroflot with dry method 180 kW bottom feed vibroflot used for silty clay soil improvement
| The Bottom Feed Electrical Vibroflot Spec. |
| Type | BJZC-BFS-400-180 |
| Power(kW) | 180 |
| Working pile diameter (mm) | 900-1200 |
| System pressure(bar) | 6 |
| Hopper volume(m³) | 1.2 |
| Pipe diameter(mm) | DN250 |
| Control type | Inverter Control |
| Air flow rate(m³/min) | 10 |
| Vibrator size L/W/H(mm) | 2600×600×700 |
| The bin size L/W/H(mm) | 4800×1300×(1300-1500) |
| Extension tube size L/W/H(mm) | 12000×300×600 |
Profile of Bottom Feed Vibroflotation:
The Bottom Feed vibro-replacement is a special method realized by using bottom feed vibroflotation device, which can fill the stones from the outlet located at the bottom of the vibroflot. It mainly used for under water vibroflotation construction or silt clay soil improvement with non-drainage shear strength less than 20kpa.
Bottom feed method vbroflotation construction need a special vibroflot equipment with bottom feed system to realize. This professional equipment are commonly composed of :
1. Electrical or hydraulic vibroflot system ( vibroflot, damper, extension tube and electrical cabinet )
2. Feeding system ( feeding tube , damper )
3. Stock bin system ( double bin or single bin )
4. Material supply system ( lifting hopper )
5. Controlling system ( Valve controlling , air pressure controlling, material level controlling )
Due to the diversity of engineering condition, bottom feed vibroflot need to be customized for production.
BVEM profile (Beijing vibroflotation engineer machinery co.,ltd)
BVEM· A pioneer to optimize construction of vibroflotation method
1. In 1997, the construction of the dam in the second phase of the three gorges project was carried out in the process of 30m deep throwing sand blasting
2. For the first time in 2001, the chimney foundation of the dingzhou power plant of 240m was strengthened by vibro - compaction method
3. In 2005, we developed the first integrated bottom feed vibroflot of China, the vibroflotation method began to treat the soft base of the soil whose Cu(shear strength) is less than 20KPa
4 In 2007, hydraulic vibroflot was used to handle the foundation of the pudu river power station,.This is the first time the treated depth achieved 32.7m in China
5. In 2014, the first YZ125KW hydraulic vibroflot was developed.
With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.
